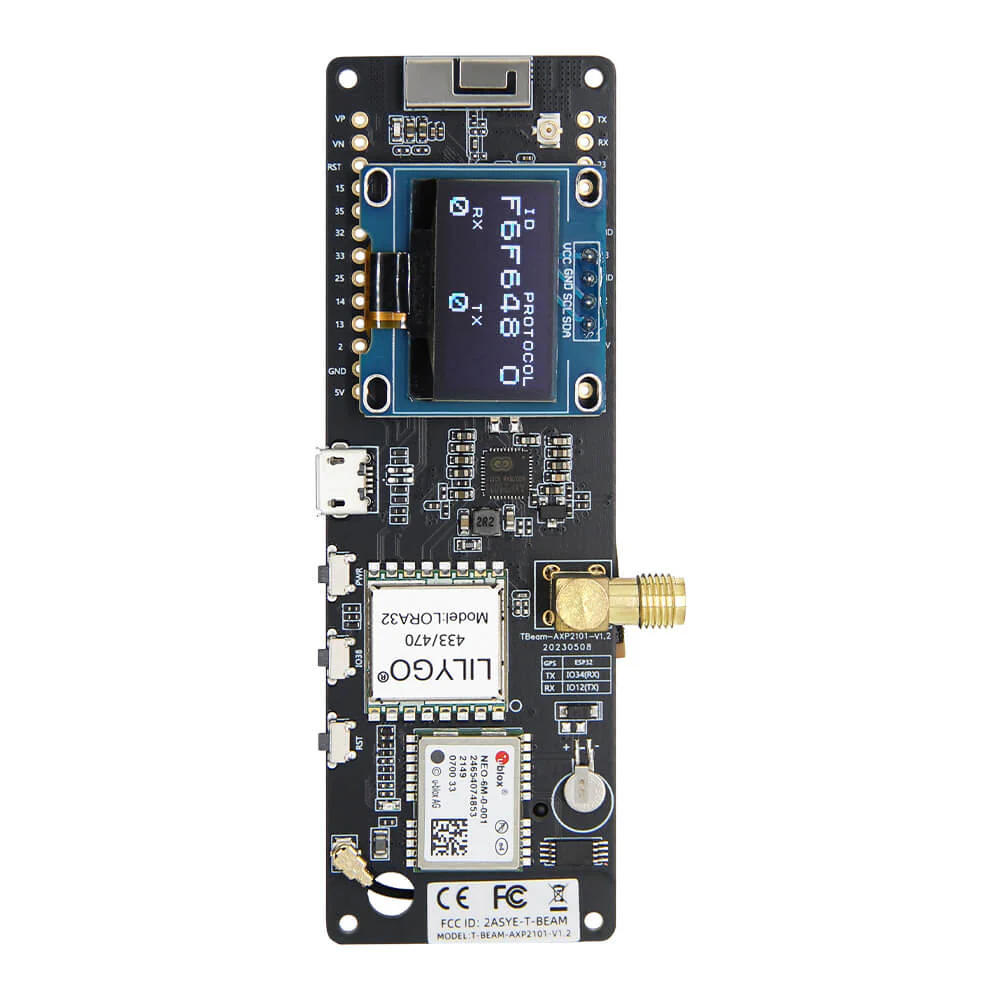

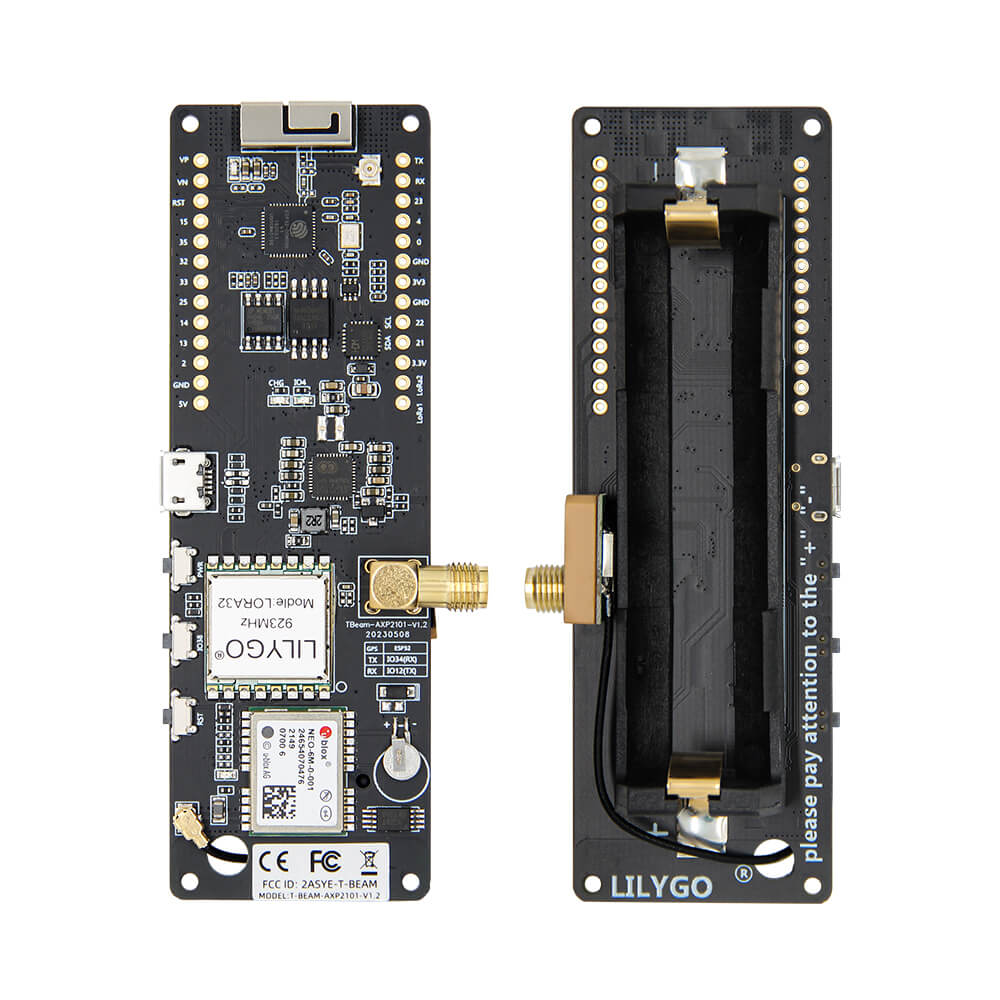

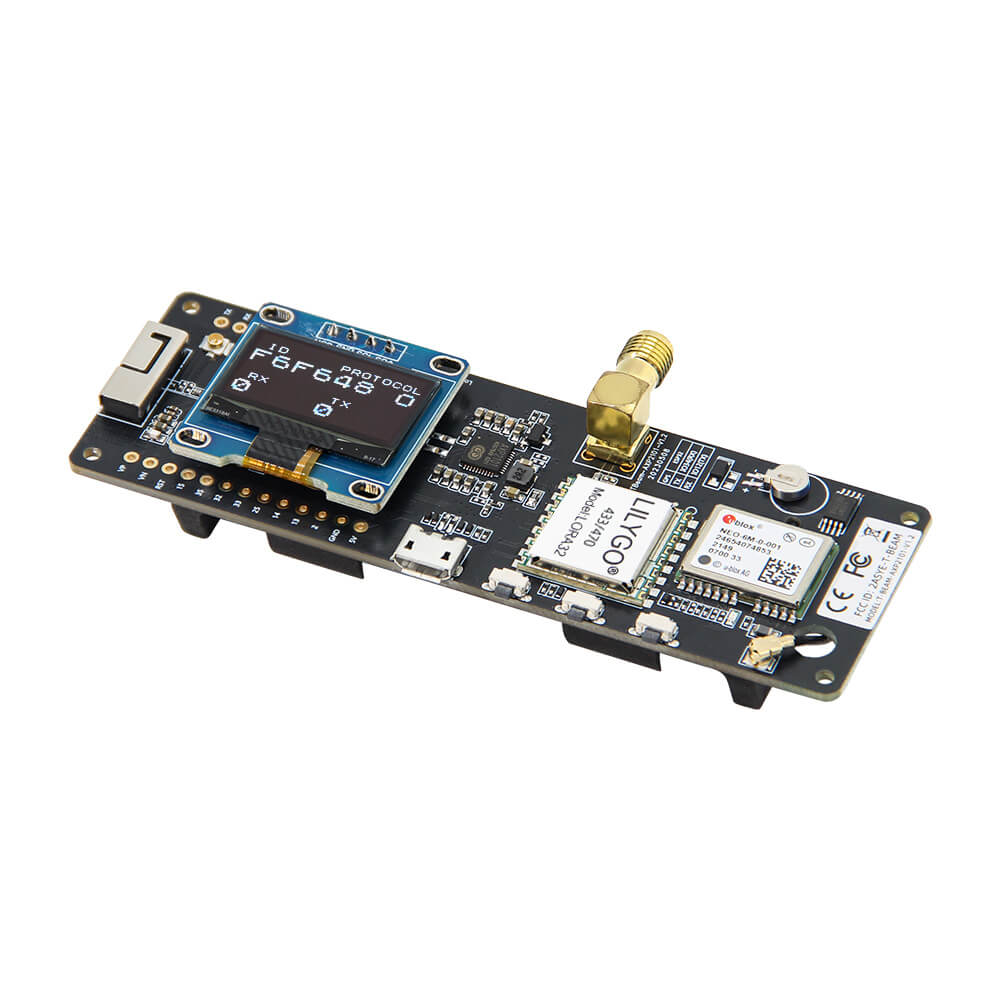

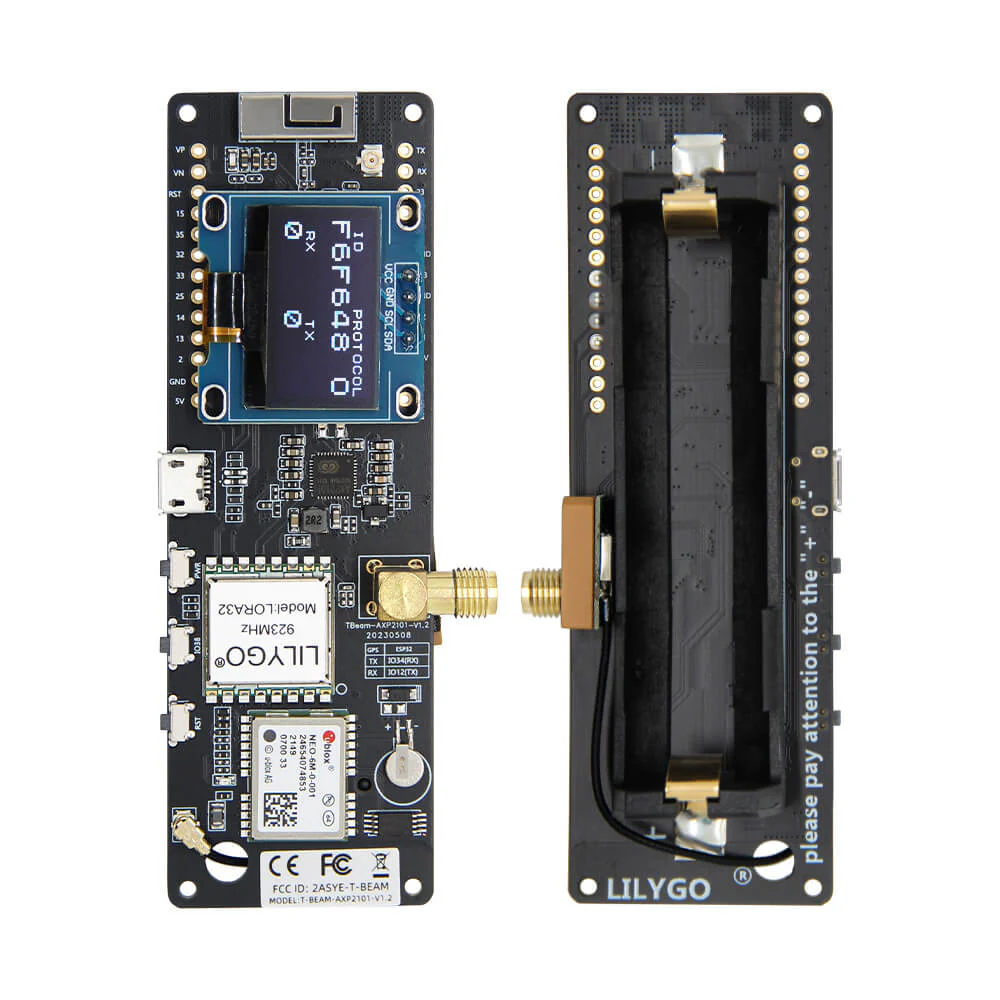

T-Beam ESP32 LoRa 433/868/915/923Mhz SX1276/SX1278 Wireless Module WiFi GPS NEO-6M With 0.96 inch OLED Display For Arduino.

Battery Size Reference

Sample Code For Reference [Github]

If you need technical support please check the below link to find more details.

LILYGO Lora Series

Specifications

MCU	ESP32
Flash	4MB
PSRAM	8MB
Serial Chip	CH9102
Wireless protocol	Wi-Fi + Bluetooth 4.2
PMU	AXP2101
Onboard functions	3 Buttons (Power+IO38+Reset)
Antenna	3D WiFi Antenna [Use by default] (Support WiFi IPEX external antenna, but you need to jump resistance) LoRa antenna GPS ceramic antenna

GPS

• NE0-6M GPS Modules: Support GPS protocol
• Onboard RTC crystal, Support interrupt/ wakeup

LoRa

• Long Range Low Power LoRa Transceiver
• High sensitivity: -i48dBm
• Transceive rate: 300 kbps
• Optional Hardware
• Version: SX1278[433Mhz] / SX1276[868/915/923Mhz]

Display Details

• OLED: 0.96 inch
• Driver: SSD1306

Power Supply Mode

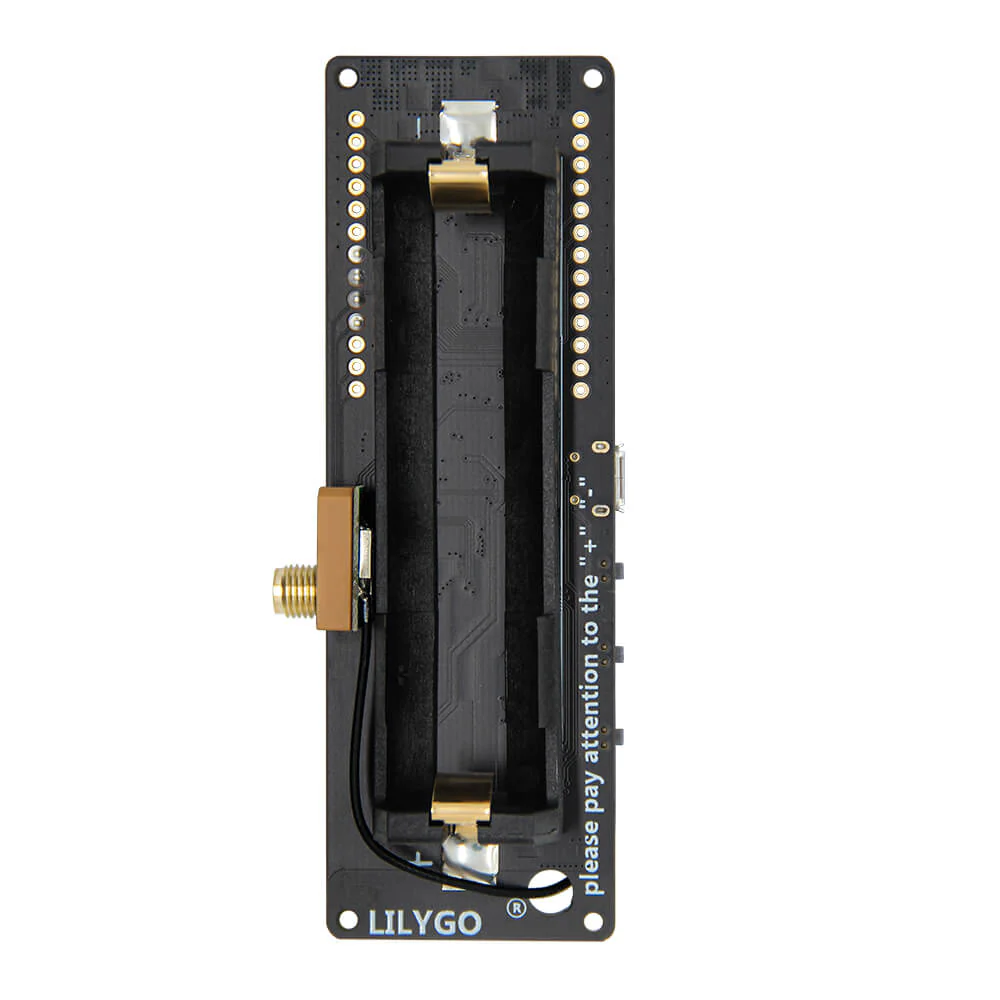

Support USB Micro/ 18650 battery holder [USB can power the battery]

Size

Pin Diagram

[Pay attention to the OLED when opening the box, ship without 18650 battery]



433Mhz or 868Mhz Options

(OLED Not Soldered Version)
